Büyükada Education Complex

Büyükada, Istanbul

Year

2024

Location

Büyükada, Istanbul

Büyükada Education Complex - Main View

Introduction

Büyükada has been an important cultural space where many writers and authors have lived and created their works throughout history. A library building has been designed to carry this heritage to the present day and preserve the unique identity of the island. The building is configured as a multifunctional center supporting cultural production with workshops, classrooms, a seminar hall, and indoor and outdoor exhibition areas. With educational spaces for children, study areas for students, and a café that strengthens public use, the building aims to be a living cultural hub.

3D Concept diagram

Concept

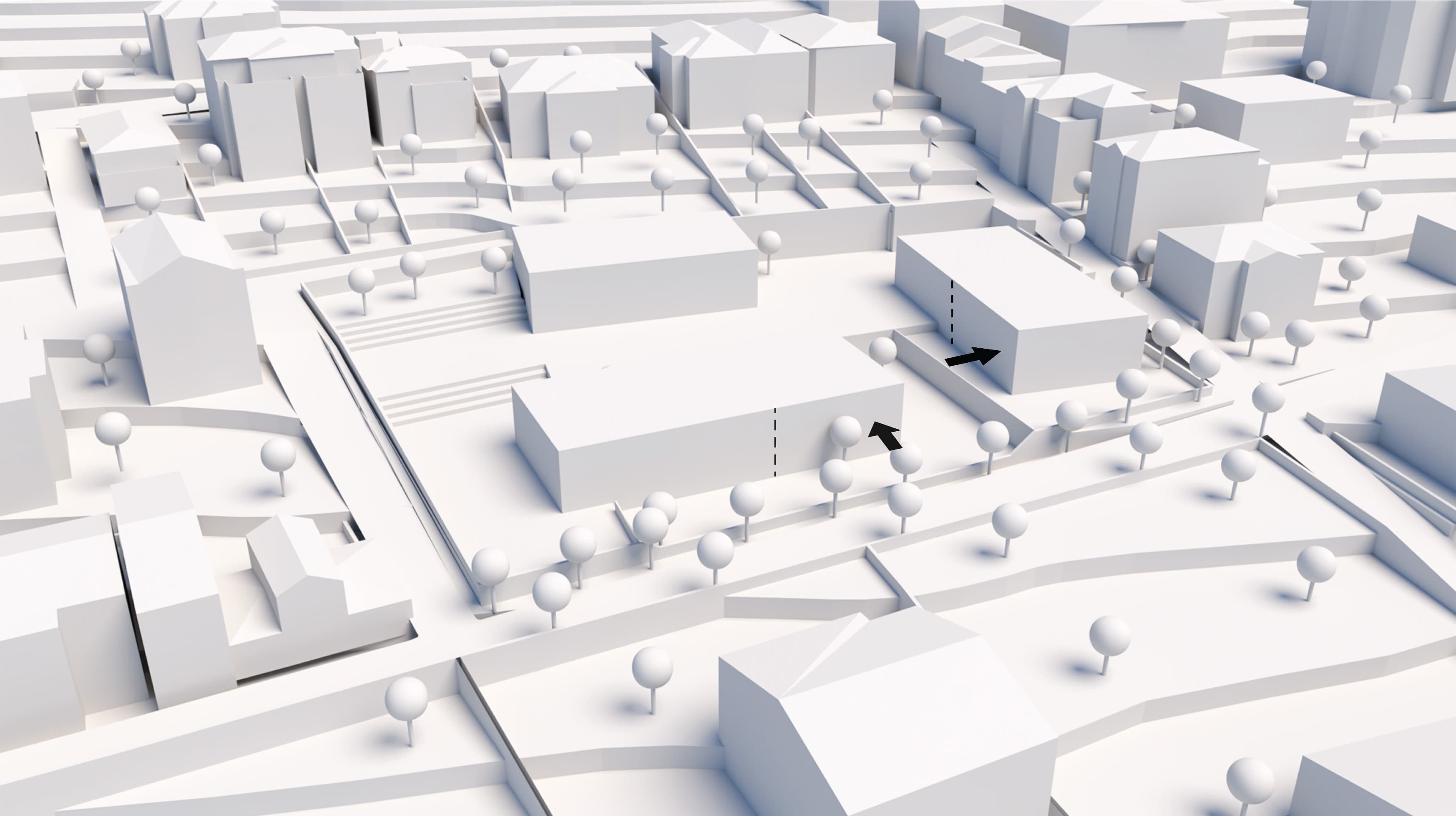

Mass Setback and Public Space Formation

After placing the masses according to the view and topography, they were set back at designated points to create an open, plaza-like public area at the Bahçelerönü Street entrance.

Mass Setback and Public Space Formation

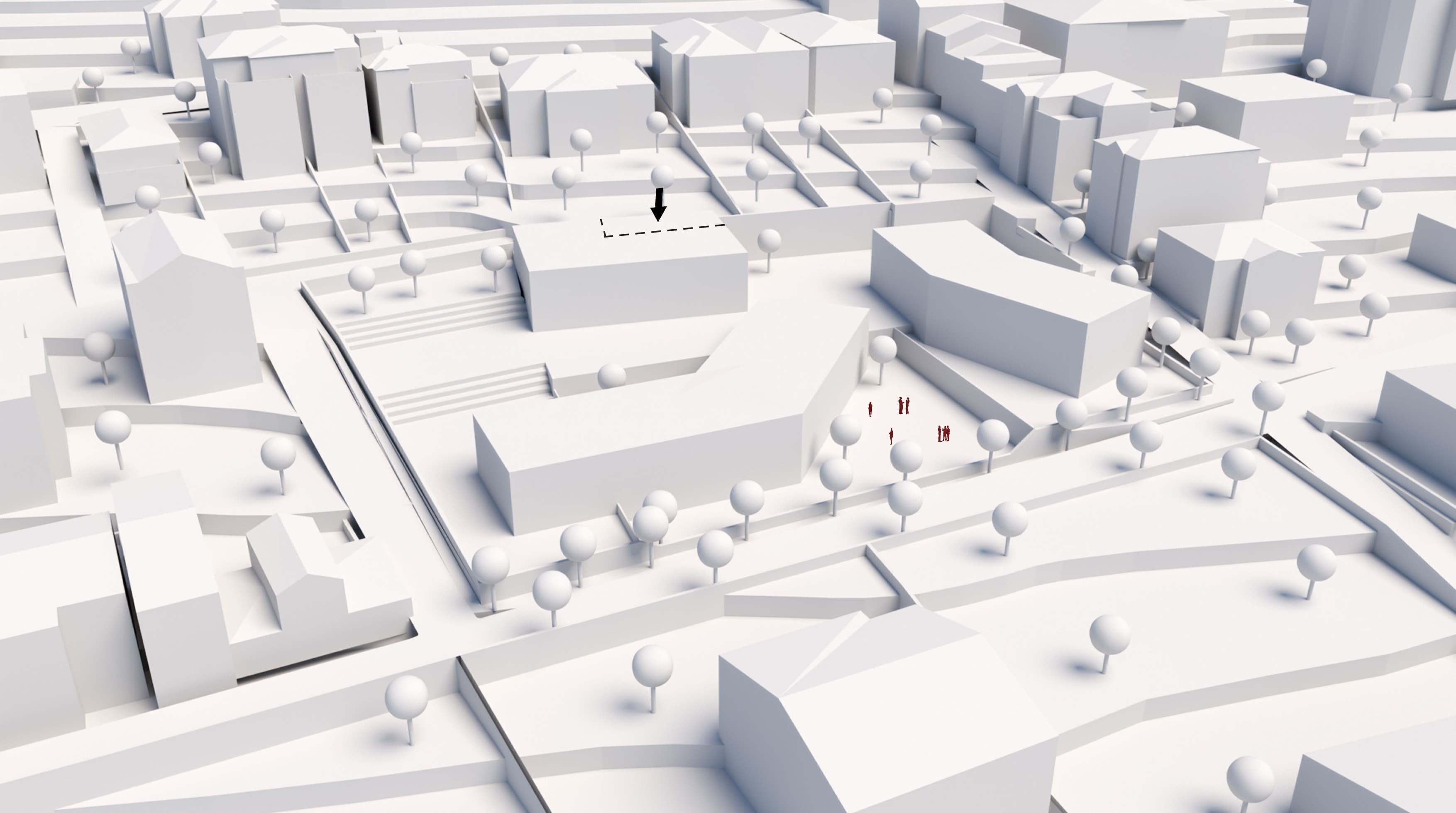

Mass Subtraction and Light-Focused Open Area

Mass Subtraction and Light-Focused Open Area

In the mass housing educational and workshop units for children, a section was removed from the rear to create an open activity area and increase natural light intake.

Movement and Spatial Connection in the Mass

To maximize the benefit from the view in the entrance mass, one end was raised upward, creating a bridge connecting to the other mass and a terrace facing the sea. At the rear, the relevant end of the mass was lowered to allow the stepped seating areas to perceive the view.

Movement and Spatial Connection in the Mass

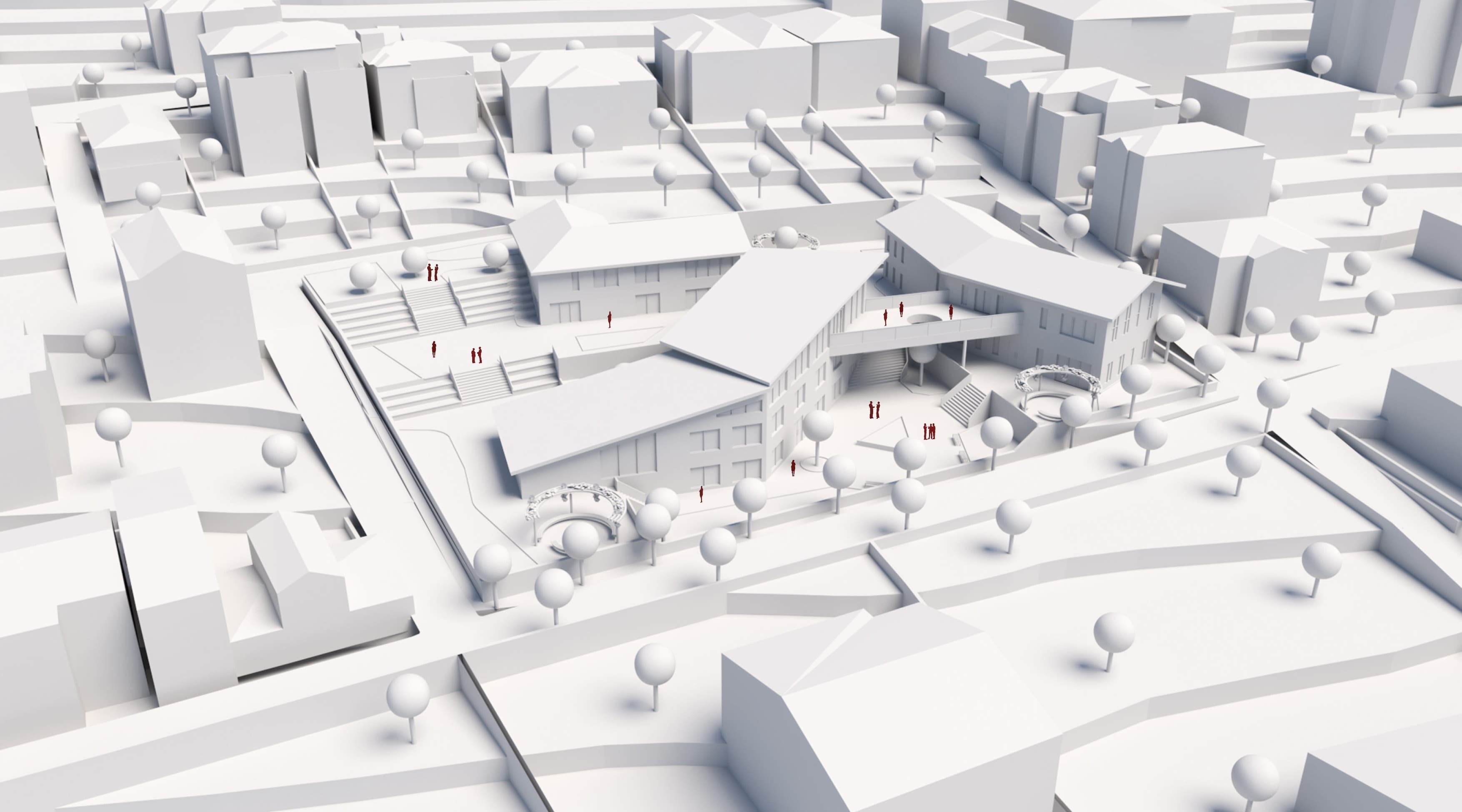

Social and Cultural Continuity

Social and Cultural Continuity

Public use was supported with open exhibition and socializing areas in the landscape. The building was designed not just as a library, but as a public center that brings the island's residents together and revives the spirit of the island.

Floor Plans

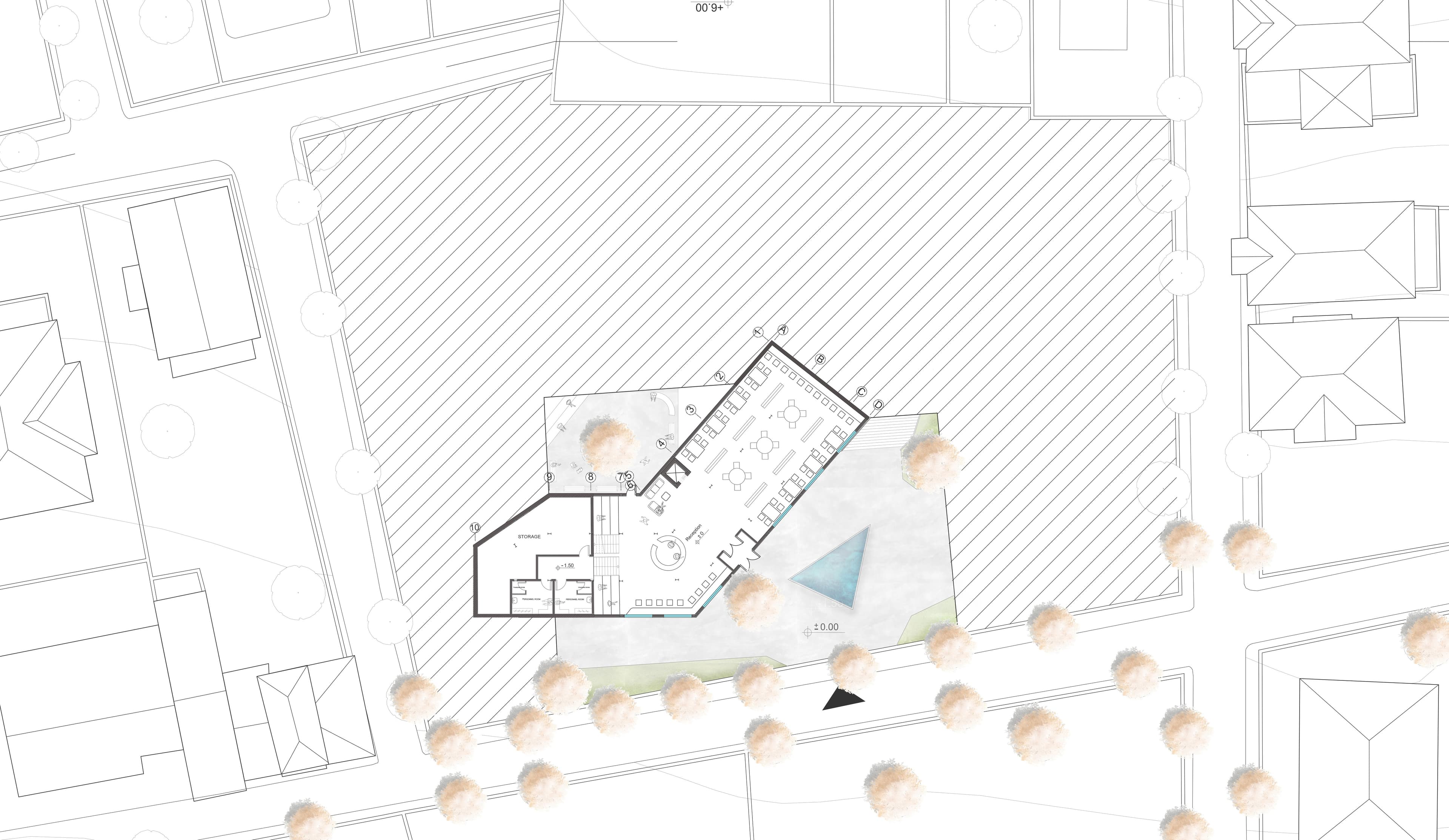

0.00 Level Plan

Scale: 1/200
0.00 Level Plan

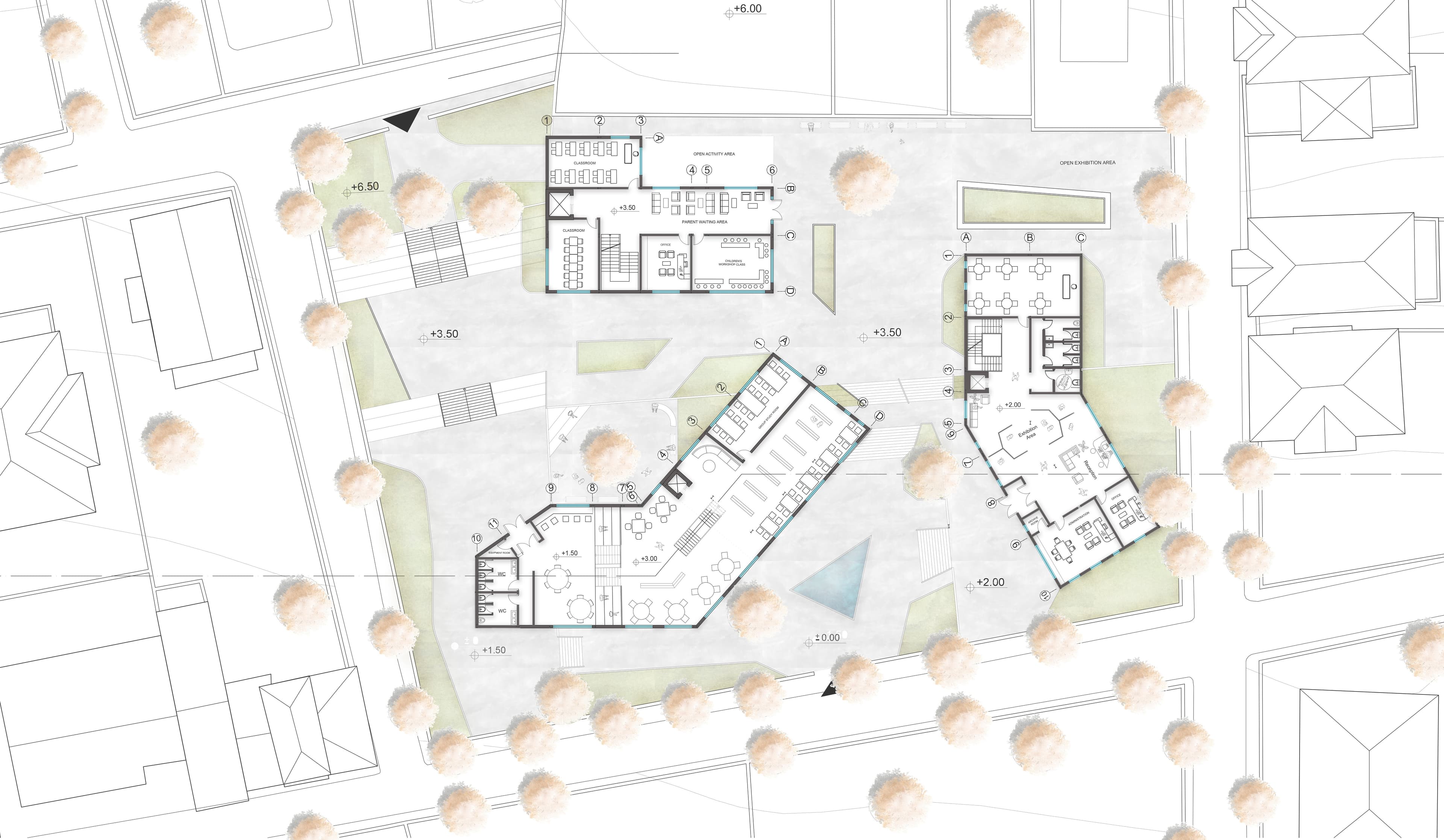

+3.00 Level Plan

Scale: 1/200
+3.00 Level Plan

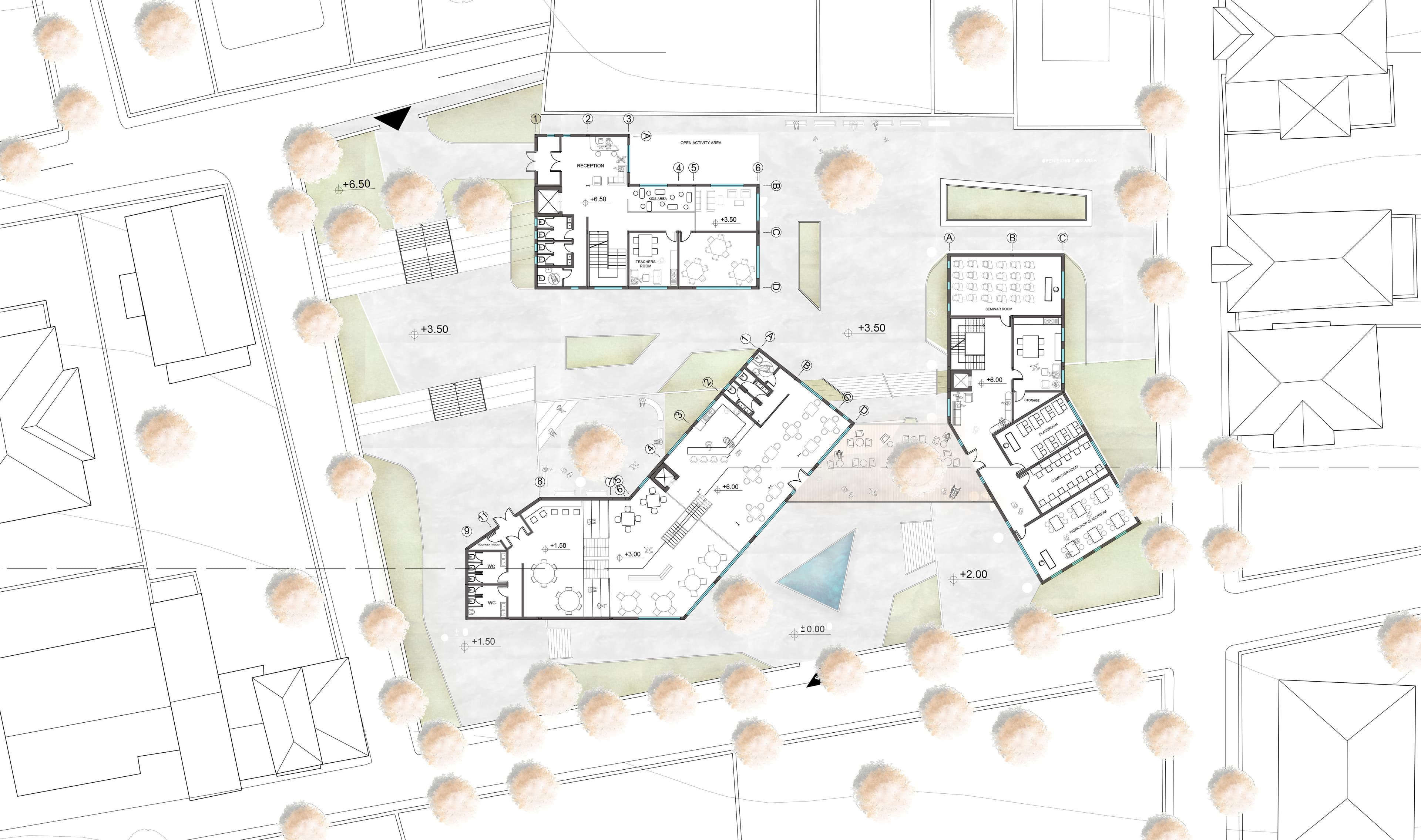

+6.00 Level Plan

Scale: 1/200
+6.00 Level Plan

Section

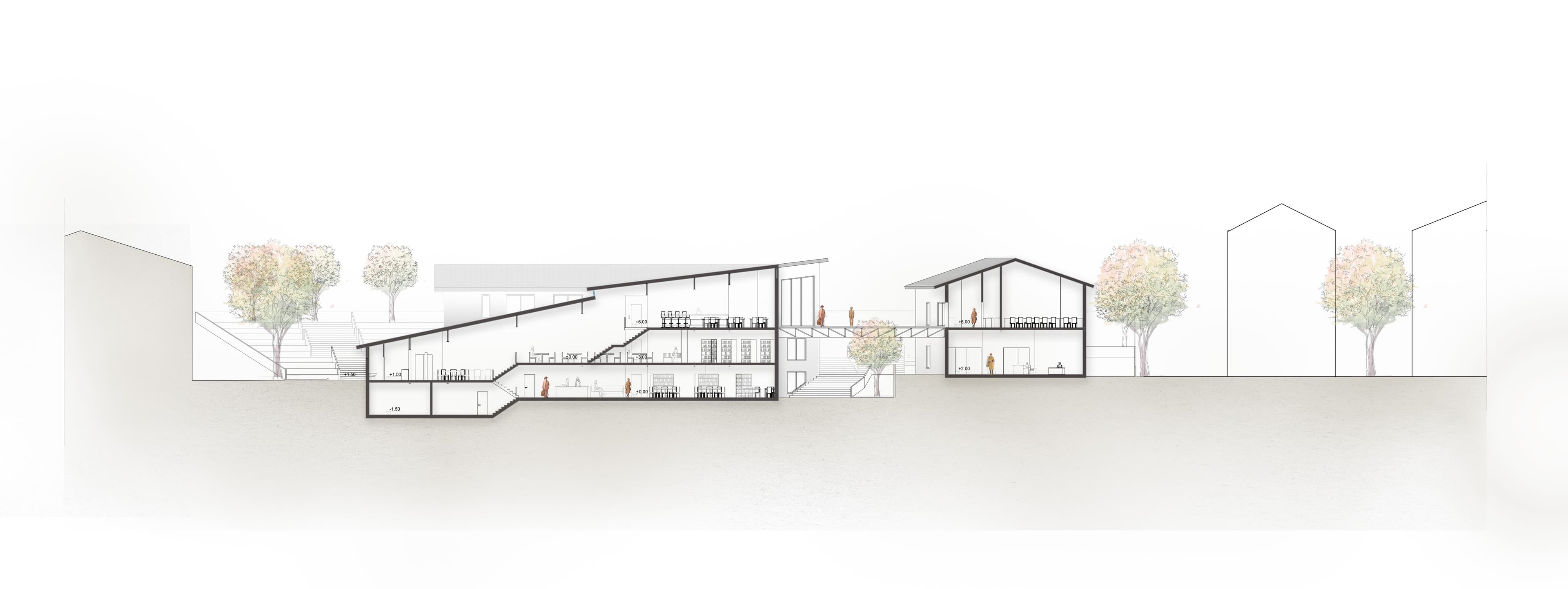

Building section

Elevations

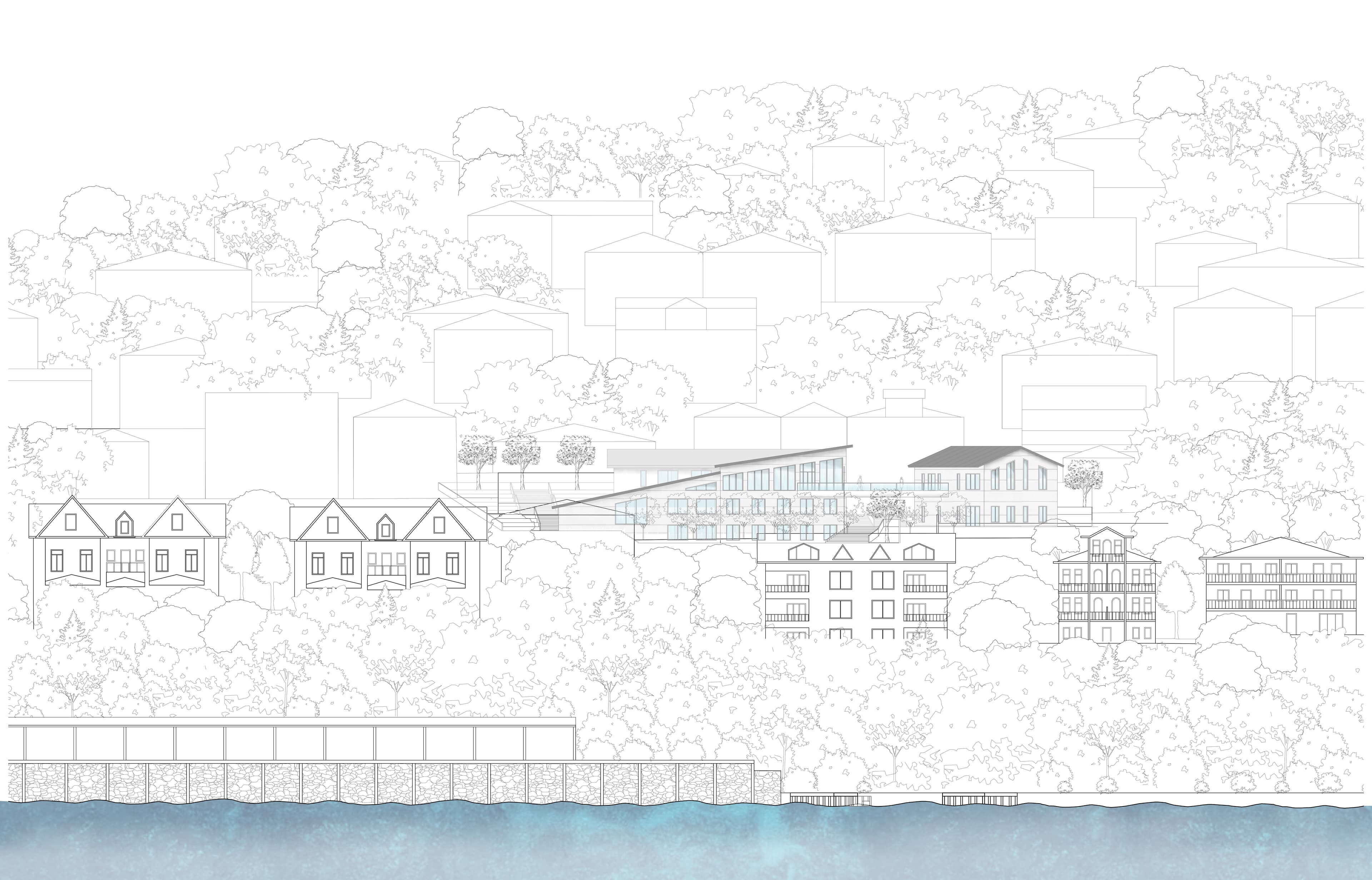

Büyükada elevation

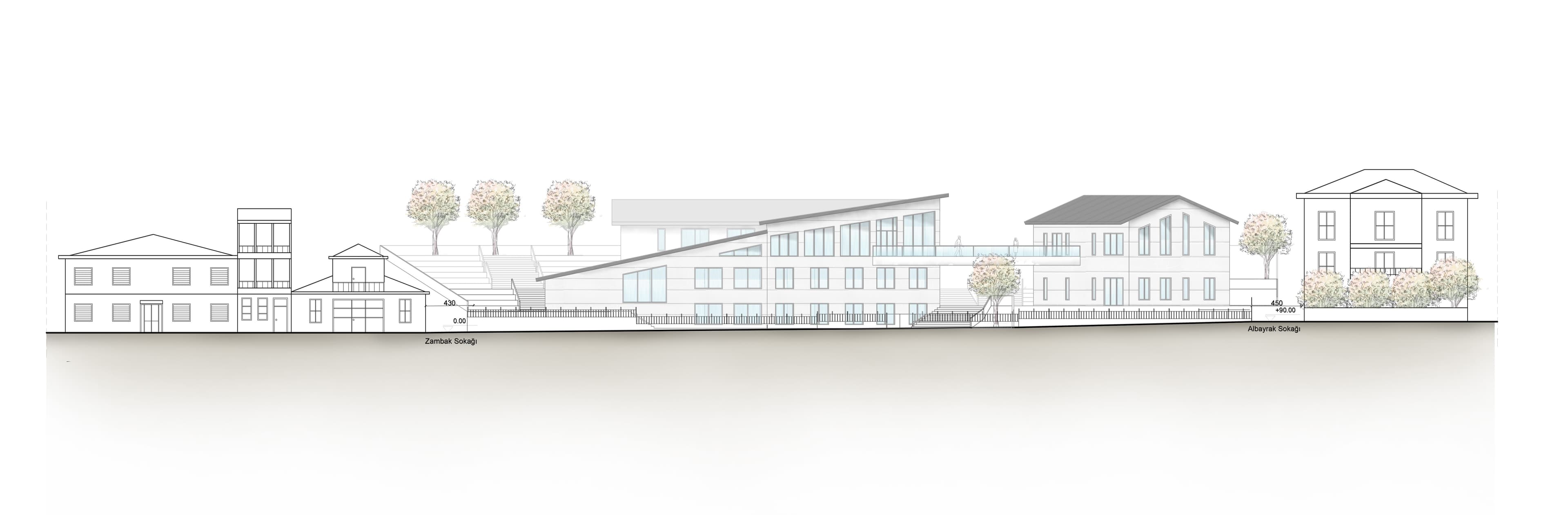

Street elevation

3D Renders

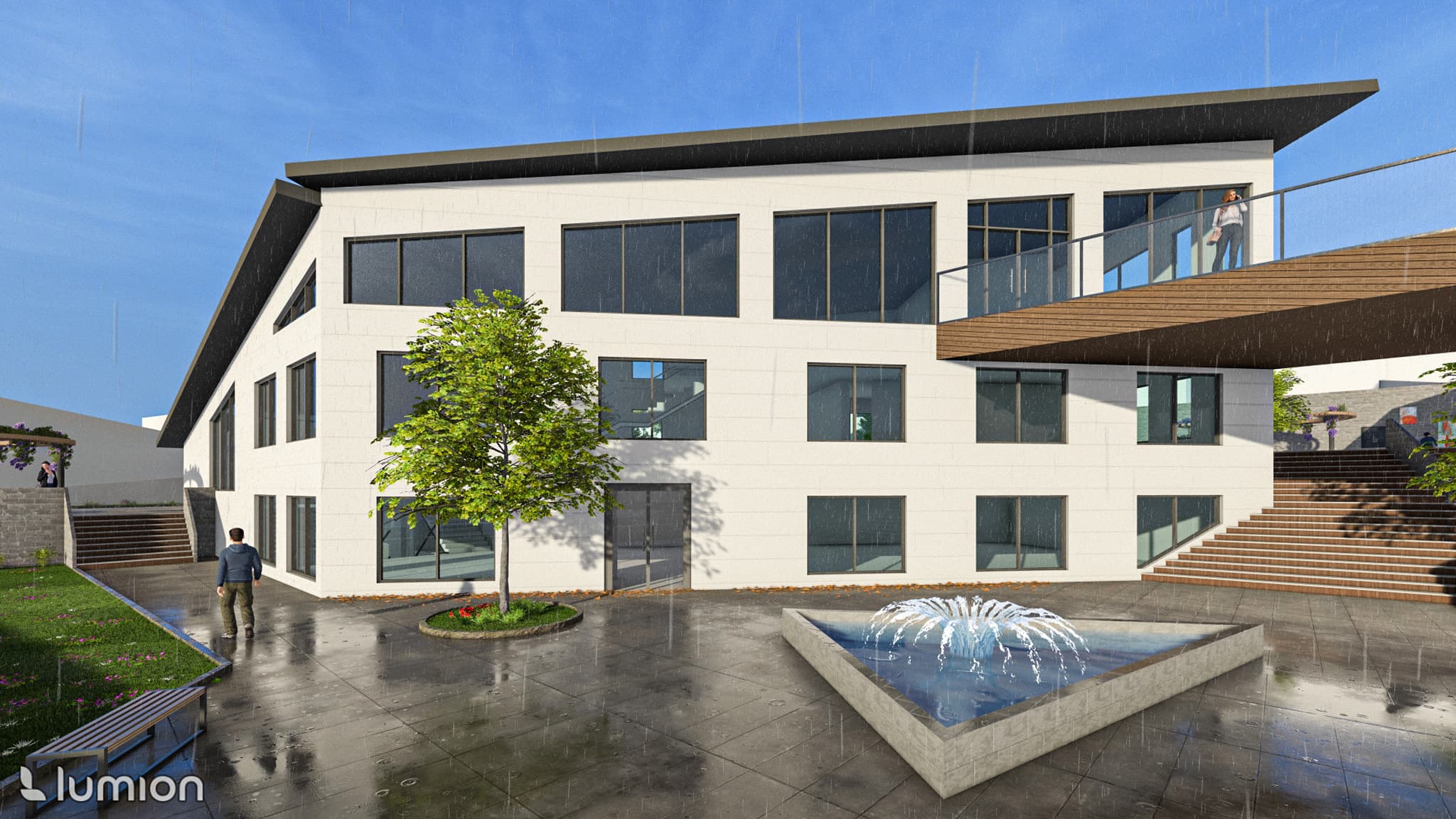

3D Render 2

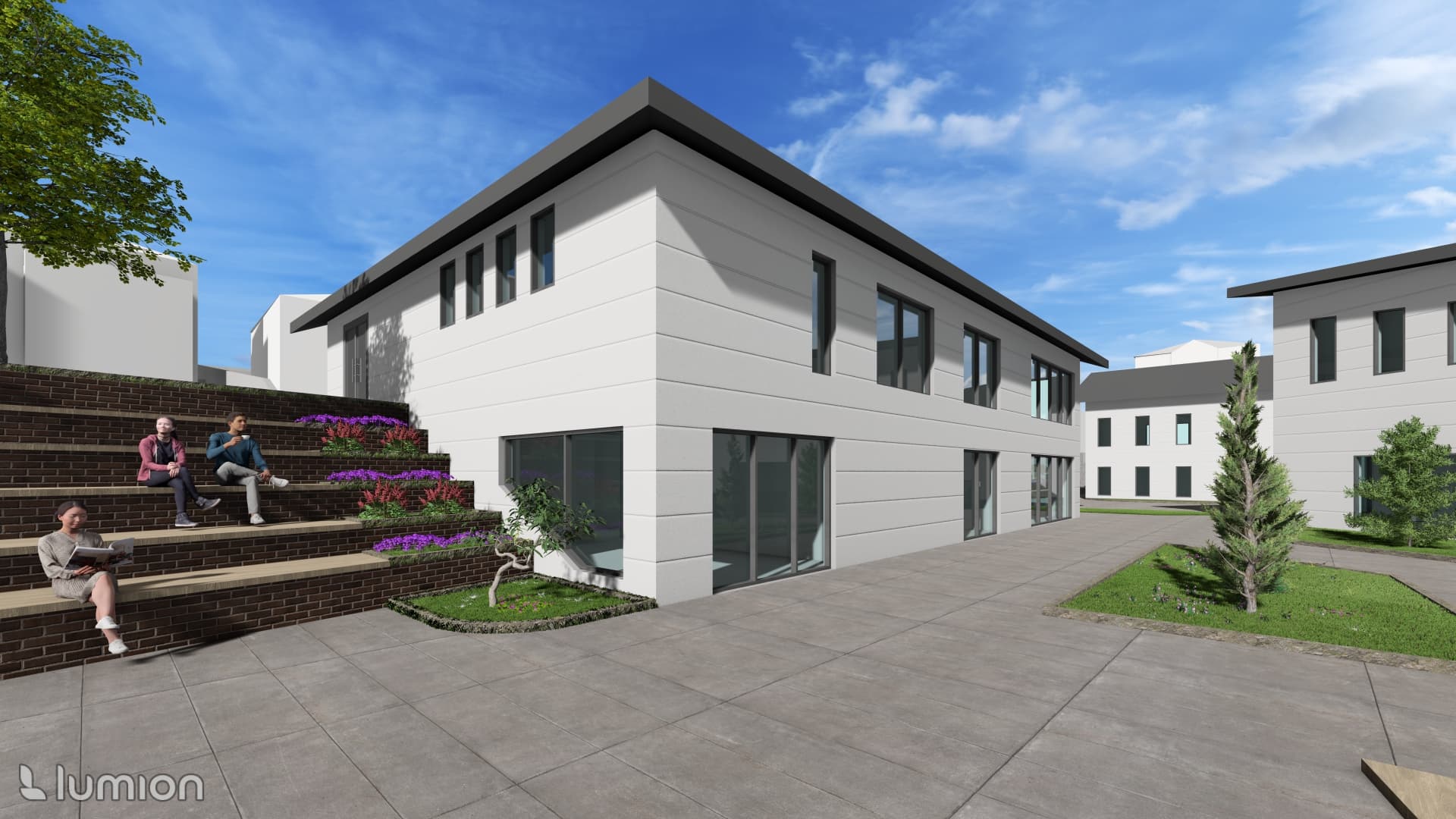

3D Render 3
3D Render 4
3D Render 5

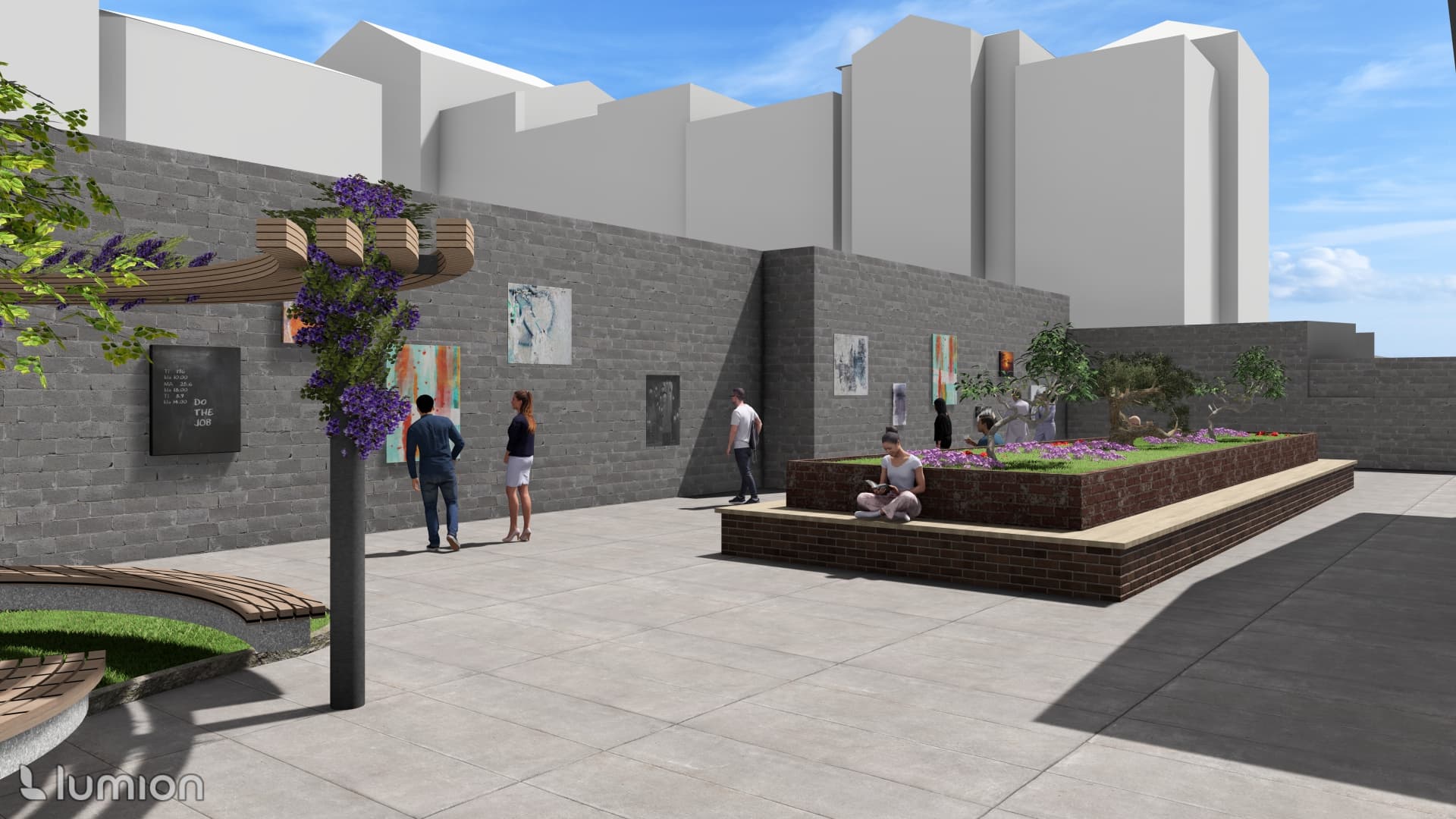

3D Render 6

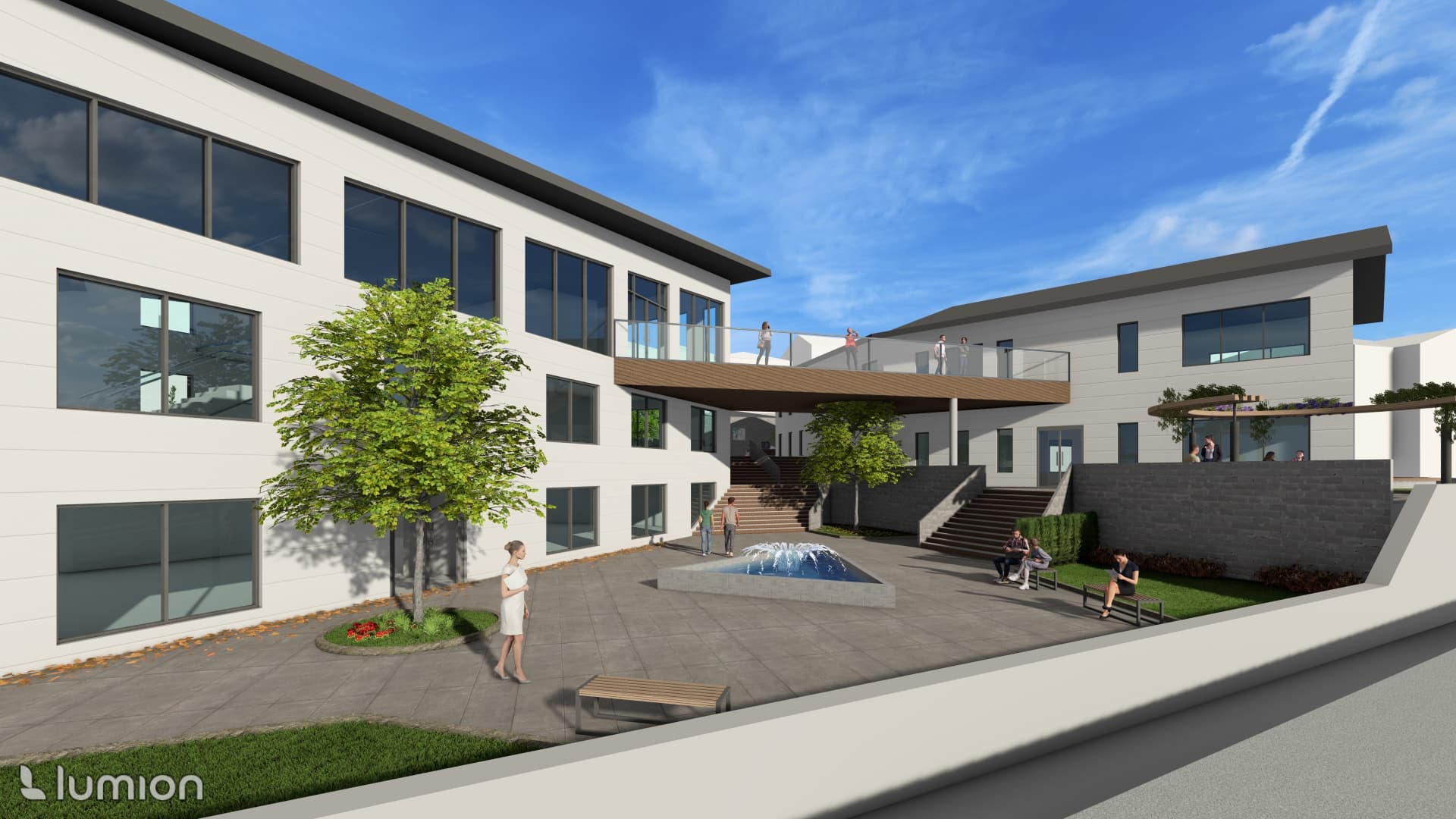

3D Render 7
